16-bit FLASH microcontroller featuring a 32MHz core frequency and 16KB of program memory. This PIC microcontroller offers 1KB of RAM, 24 I/O pins with 18 programmable, and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. Operating from 1.8V to 3.6V, it includes 12 ADC channels, 2 I2C channels, 2 SPI channels, 2 UART channels, and 4 timers/counters. The device is housed in a lead-free, 20-pin QFN package measuring 5mm x 5mm with a 0.95mm height, suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageQFN
Current2.7mA
Quick Jump:
Technical Specifications
Microchip PIC24F16KL401-I/MQ technical specifications.
General
| Address Bus Width | 16b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, IrDA, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 12 |
| Number of I/Os | 24 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 18 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC24F |
| Supply Current | 2.7mA |
| Watchdog Timer | Yes |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24F16KL401-I/MQ Datasheet
Download the complete datasheet for Microchip PIC24F16KL401-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

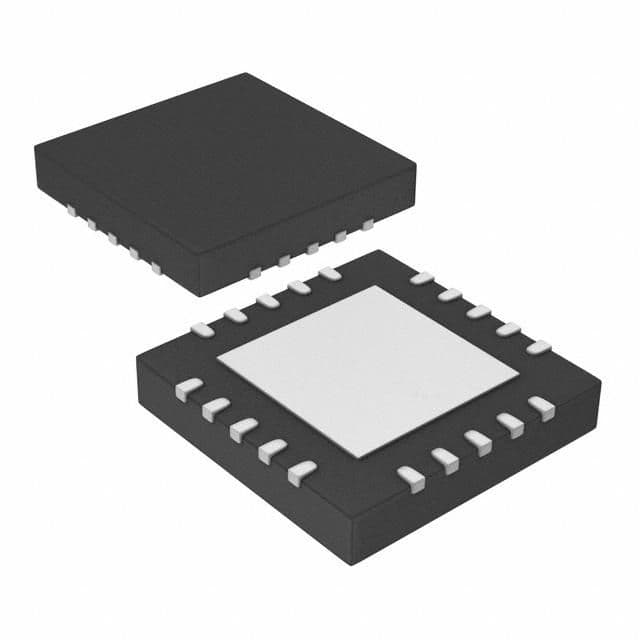

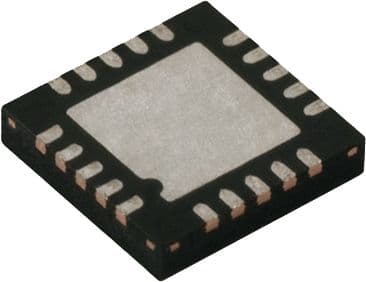

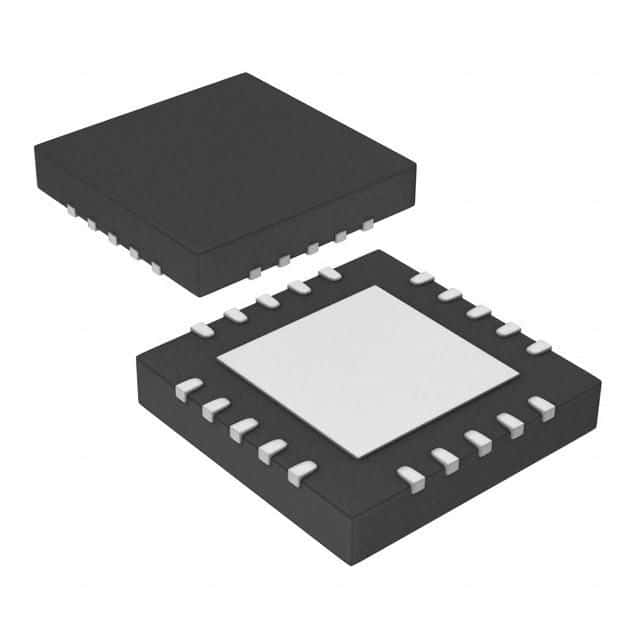

Product Images
