16-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 16KB of FLASH memory and 1KB of RAM, with 24 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 12 ADC channels and 3 PWM channels. Designed for a wide operating temperature range of -40°C to 85°C, it supports supply voltages from 1.8V to 3.6V.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F16KL402-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
12
Number of I2C Channels
2
Number of Programmable I/O
24
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
4
Number of UART Channels
2
Package Quantity
61
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
1KB
Series
PIC24F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC24F16KL402-I/ML Datasheet
Download the complete datasheet for Microchip PIC24F16KL402-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

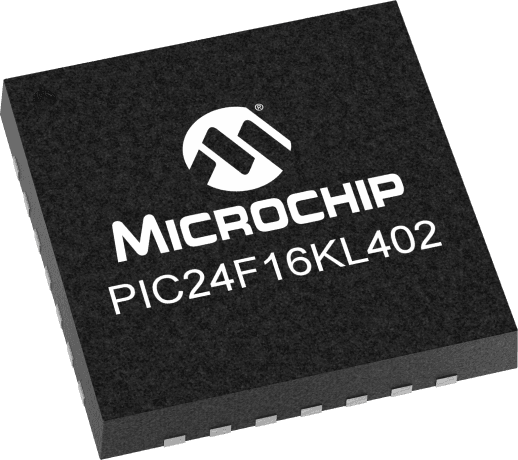

Product Images
