16-bit PIC microcontroller featuring a 64MHz core frequency and 16KB FLASH memory. This CMOS device offers 2KB RAM, 24 I/Os, and 19 ADC channels. Integrated peripherals include UART, I2C, SPI, IrDA, USART, PWM, WDT, LVD, Brown-out Detect/Reset, and POR. Operates from 1.8V to 3.6V supply voltage with a temperature range of -40°C to 85°C.
Frequency64MHz
PackageSO
Quick Jump:
Technical Specifications
Microchip PIC24F16KM202-I/SO technical specifications.
General
Package/Case
SO
Core Architecture
PIC
Data Bus Width
16b
Frequency
64MHz
Interface
UART, I2C, SPI, IrDA, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
19
Number of I/Os
24
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KM202-I/SO Datasheet
Download the complete datasheet for Microchip PIC24F16KM202-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

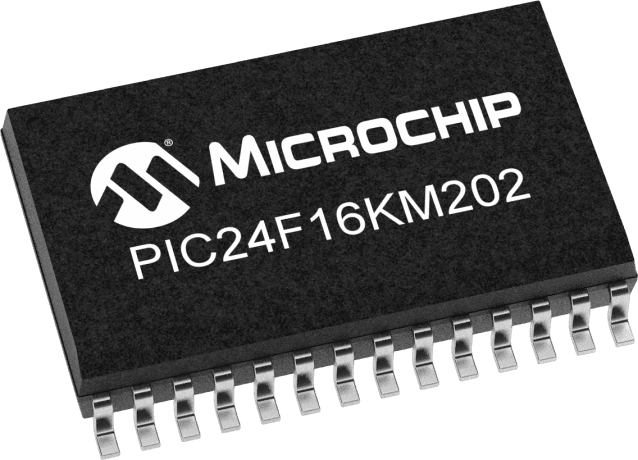

Product Images
