16-bit microcontroller featuring a PIC core, operating at up to 32MHz. This integrated circuit offers 128KB of FLASH memory and 24KB of RAM, with 84 I/O pins and 44 programmable I/O. Supports multiple interfaces including I2C (3 channels), SPI (3 channels), UART (4 channels), USB, IrDA, and USART. Includes 24 ADC channels, 9 PWM channels, 5 timers/counters, and peripherals like Brown-out Detect/Reset, POR, WDT, LVD, and PWM. Packaged in a 121-pin TFBGA with a 10mm x 10mm x 0.65mm footprint, operating from 2.2V to 3.6V and rated for -40°C to 85°C.
Frequency32MHz
PackageTFBGA
Current12mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ128DA110-I/BG technical specifications.
General
Address Bus Width
16b
Package/Case
TFBGA
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.65mm
Interface
I2C, SPI, UART, USB, IrDA, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Number of ADC Channels
24
Number of I/Os
84
Number of I2C Channels
3
Number of Programmable I/O
44
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
24KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Supply Current
12mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128DA110-I/BG Datasheet
Download the complete datasheet for Microchip PIC24FJ128DA110-I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

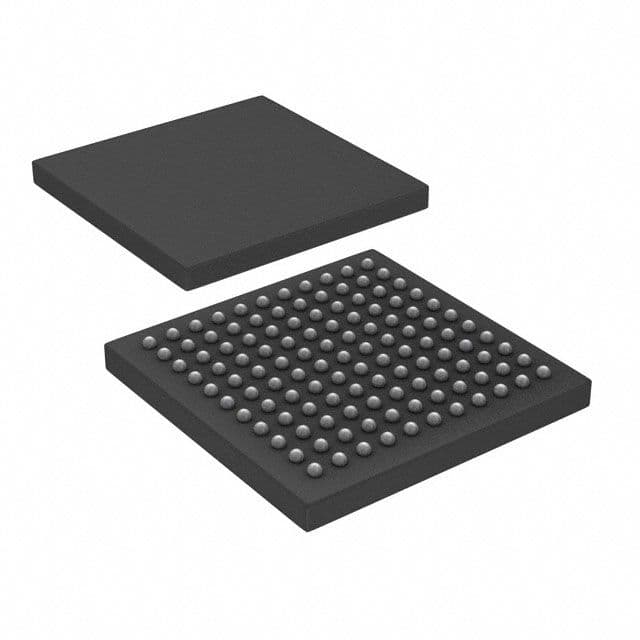

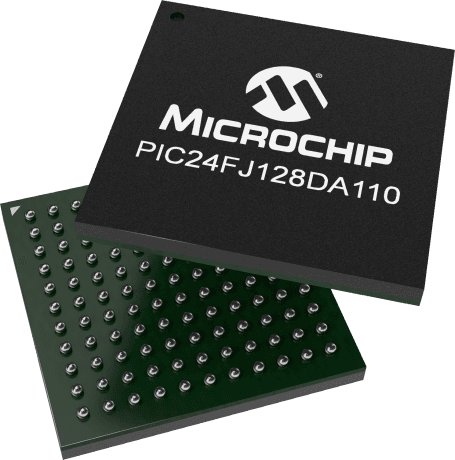

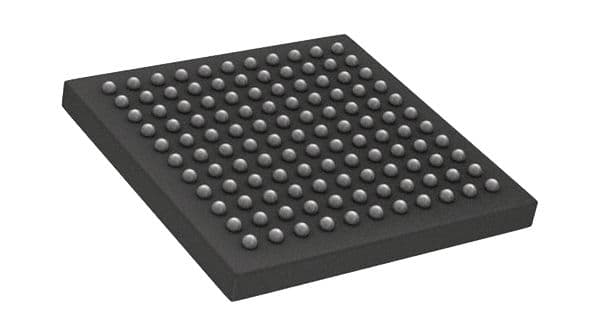

Product Images
