The PIC24FJ128GA006-I/MR is a 16-bit microcontroller from Microchip, featuring a 16MHz core frequency and 128KB of FLASH memory. It also includes 8KB of RAM and supports various interfaces such as I2C, SPI, UART, and USART. The device is packaged in a TQFP and operates within a temperature range of -40°C to 85°C. It is RoHS compliant and available in a 40-pin package.
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GA006-I/MR technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 16MHz |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Number of I/Os | 4 |
| Number of Programmable I/O | 4 |
| Number of Timers/Counters | 5 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 8KB |
| RoHS Compliant | Yes |
| Series | PIC24F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ128GA006-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ128GA006-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

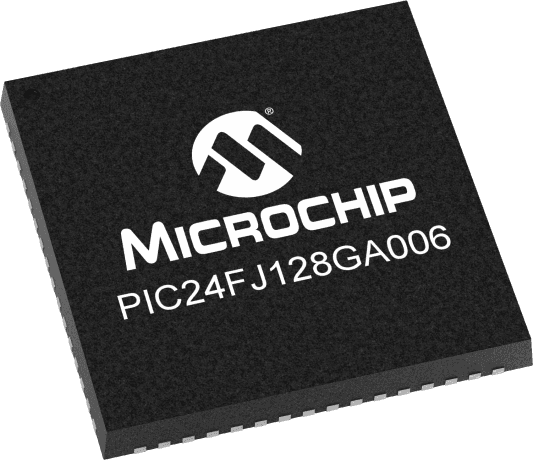

Product Images
