16-bit microcontroller featuring a PIC core, operating at up to 32MHz. Offers 128KB FLASH memory and 8KB RAM, with 53 programmable I/O pins. Supports I2C, SPI, IrDA, UART, and USART interfaces, along with peripherals like PWM, WDT, DMA, and LCD. Designed for surface mount installation in a VQFN package, with an operating temperature range of -40°C to 85°C and a supply voltage of 2V to 3.6V.
Frequency32MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GA306T-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GA306T-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ128GA306T-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

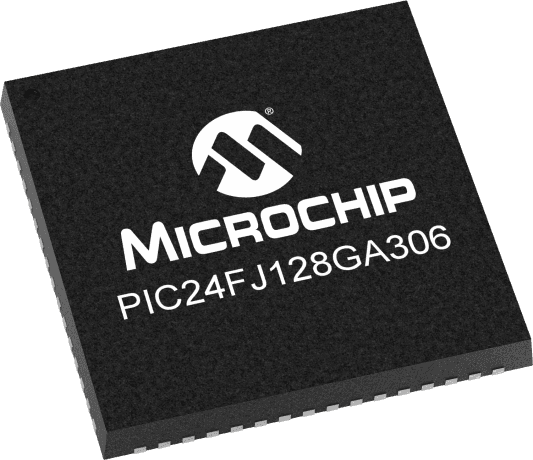

Product Images
