16-bit microcontroller featuring a PIC CPU core, operating at up to 32MHz. This FLASH-based MCU offers 128KB of program memory and 96KB of RAM, with 84 I/O pins, including 44 programmable. Integrated peripherals include I2C, SPI, UART, USB, IrDA, USART interfaces, 24 ADC channels, and 5 timers/counters. Packaged in a 100-pin TQFP, it operates from 2V to 3.6V supply voltage and has a temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
Current12mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GB210-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, UART, USB, IrDA, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
24
Number of I/Os
84
Number of Programmable I/O
44
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
PIC® 24F
Supply Current
12mA
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GB210-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GB210-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

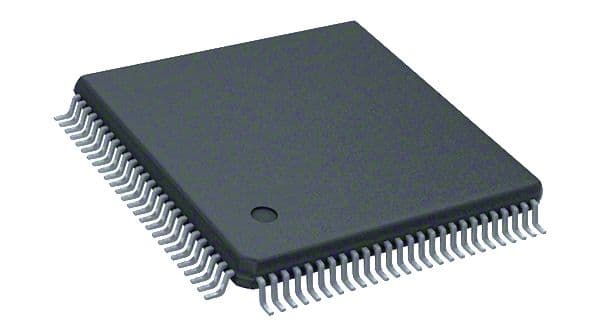

Product Images
