16-bit microcontroller featuring a PIC CPU core, operating at up to 32MHz. This FLASH-based MCU offers 128KB of memory and 8KB of RAM, with 53 I/Os including 48 programmable. Integrated peripherals include SPI, I2C, USB, IrDA, and UART interfaces, alongside 30 ADC channels and 9 PWM channels. Packaged in a 64-pin TQFP with dimensions of 10mm x 10mm x 1.05mm, it operates from 2V to 3.6V and is RoHS compliant.
Frequency32MHz
PackageTQFP
Current5.7mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GC006-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.05mm
Interface
SPI, I2C, USB, IrDA, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Number of ADC Channels
30
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
48
Number of PWM Channels
9
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, LCD, DMA
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Supply Current
5.7mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GC006-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GC006-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

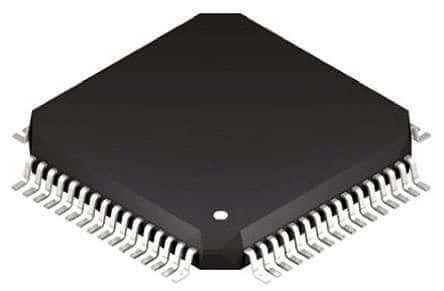

Product Images
