16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 16KB of FLASH memory and 4KB of RAM, with 21 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, IrDA interfaces, 5 timers/counters, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Designed for operation between -40°C and 125°C with supply voltages from 2.2V to 3.6V, this RoHS compliant component is packaged in SOIC.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16GA002-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ16GA002-E/SO Datasheet
Download the complete datasheet for Microchip PIC24FJ16GA002-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

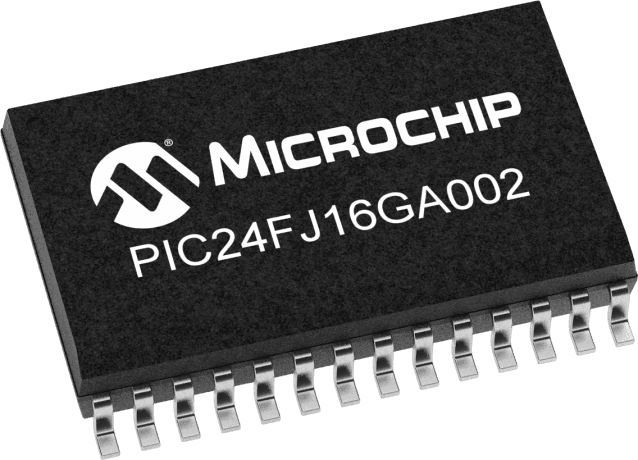

Product Images
