16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz with 16KB of FLASH memory and 4KB of RAM. This surface-mount device offers 21 programmable I/O pins, 5 PWM channels, and 5 timers/counters. Integrated peripherals include I2C, SPI, UART, USART, IrDA, Brown-out Detect/Reset, POR, and WDT. Designed for a wide operating temperature range of -40°C to 125°C and a supply voltage of 2V to 3.6V.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16GA002-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
21
Number of PWM Channels
5
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ16GA002-E/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ16GA002-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

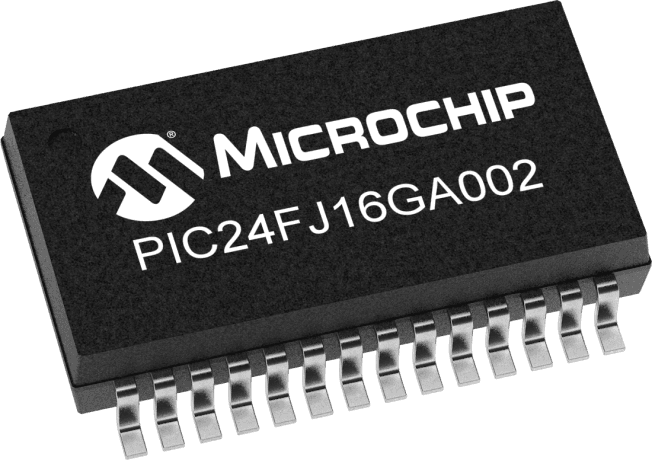

Product Images
