16-bit microcontroller featuring a 32MHz PIC core, 16KB FLASH memory, and 4KB RAM. This surface mount device offers 21 programmable I/Os and supports I2C, SPI, IrDA, and UART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and LVD. Operates from 2V to 3.6V supply voltage with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16GA002-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
2.35mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ16GA002-I/SO Datasheet
Download the complete datasheet for Microchip PIC24FJ16GA002-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

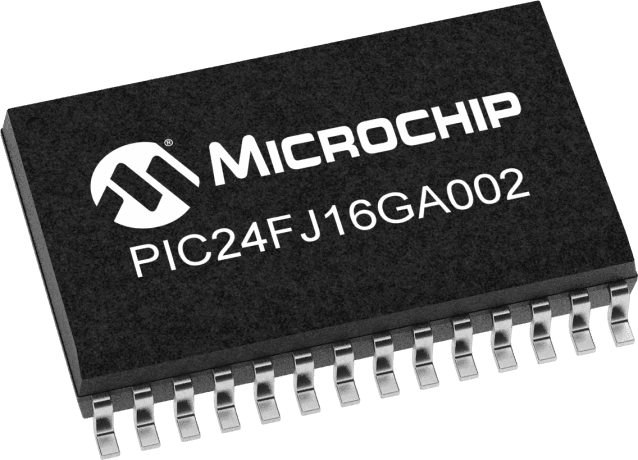

Product Images
