16-bit microcontroller featuring a 32MHz core frequency and 16KB FLASH memory. This surface mount device offers 35 programmable I/Os, 13 ADC channels, and 5 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, IrDA, Brown-out Detect/Reset, POR, WDT, and LVD. Operating from 2V to 3.6V, it supports a temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16GA004-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
35
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ16GA004-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ16GA004-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

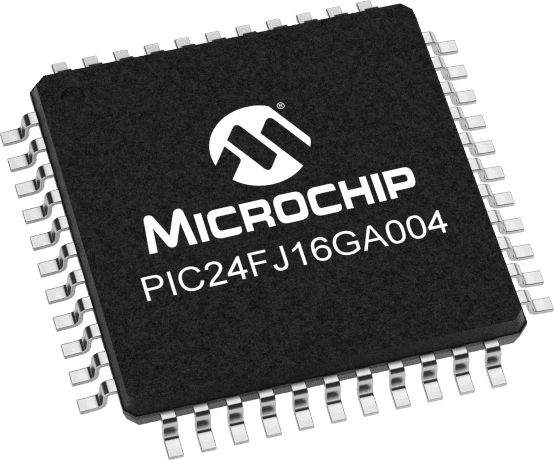

Product Images
