16-bit microcontroller featuring a 192KB FLASH memory and 16KB RAM, operating at up to 32MHz. This surface mount device offers 53 programmable I/Os, 16 analog input channels, and multiple communication interfaces including I2C, SPI, and UART. Integrated peripherals include a watchdog timer, brown-out detect, and PWM channels, all within a lead-free QFN EP package.
Frequency32MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ192GA106-I/MR technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
16b
Density
192KB
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
192KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
53
Number of I2C Channels
3
Number of Programmable I/O
53
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ192GA106-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ192GA106-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

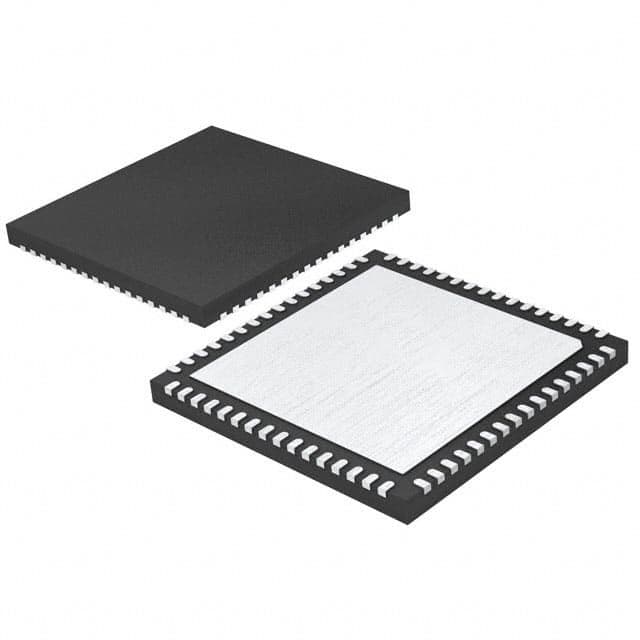

Product Images
