16-bit microcontroller featuring a PIC core architecture, operating at a maximum frequency of 32MHz. This FLASH memory microcontroller offers 256KB of program memory and 24KB of RAM. It supports multiple interfaces including I2C, SPI, RS-232, USB, UART, and IrDA, with 84 I/O pins available. The device is housed in a 121-pin TFBGA package with dimensions of 10mm x 10mm and a height of 0.65mm, operating within a temperature range of -40°C to 85°C. Integrated peripherals include a watchdog timer, PWM, and multiple timers/counters.
Frequency32MHz
PackageTFBGA
Current12mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ256DA110-I/BG technical specifications.
General
Address Bus Width
16b
Package/Case
TFBGA
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.65mm
Interface
I2C, SPI, RS-232, USB, UART, IrDA, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Number of ADC Channels
16
Number of I/Os
84
Number of I2C Channels
3
Number of Programmable I/O
23
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
24KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
12mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256DA110-I/BG Datasheet
Download the complete datasheet for Microchip PIC24FJ256DA110-I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

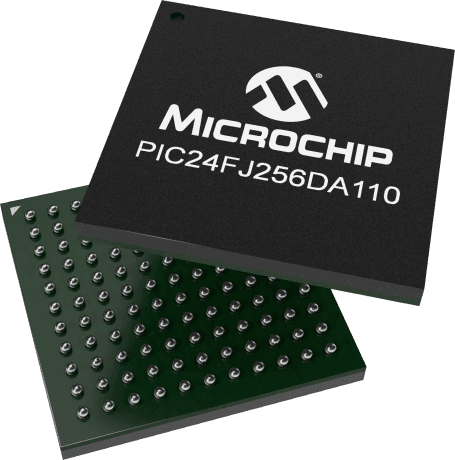

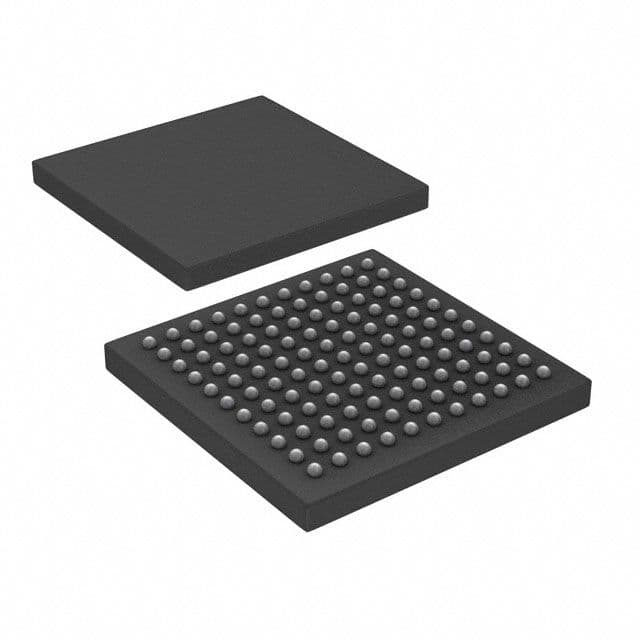

Product Images
