16-bit Flash microcontroller featuring a PIC core architecture, operating at up to 32MHz. This MCU offers 256KB of FLASH memory and 96KB of RAM, with a 16-bit address and data bus. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with USB, IrDA, and 9 PWM channels. The device is housed in a 64-pin TQFP package (10x10mm, 1mm height) and supports a supply voltage range of 2.2V to 3.6V.
Frequency32MHz
PackageTQFP
Current12mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ256DA206-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1mm
Interface
I2C, SPI, UART, USB, IrDA, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Supply Voltage
2.2V
Number of ADC Channels
16
Number of I/Os
52
Number of I2C Channels
3
Number of Programmable I/O
52
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
12mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256DA206-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ256DA206-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

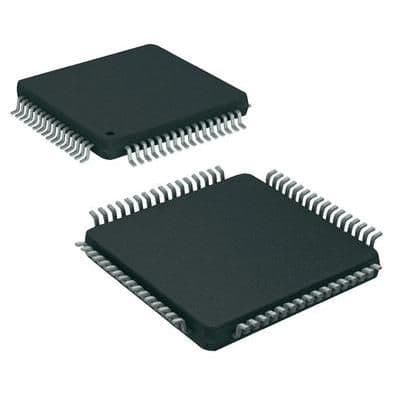

Product Images
