16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 256KB of FLASH memory and 16KB of RAM, with 53 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, IrDA interfaces, along with Brown-out Detect, POR, PWM, WDT, DMA, LVD, and LCD support. Designed for a wide operating temperature range of -40°C to 85°C, it requires a supply voltage between 2V and 3.6V.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ256GA406-I/MR technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LVD, LCD
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256GA406-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ256GA406-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

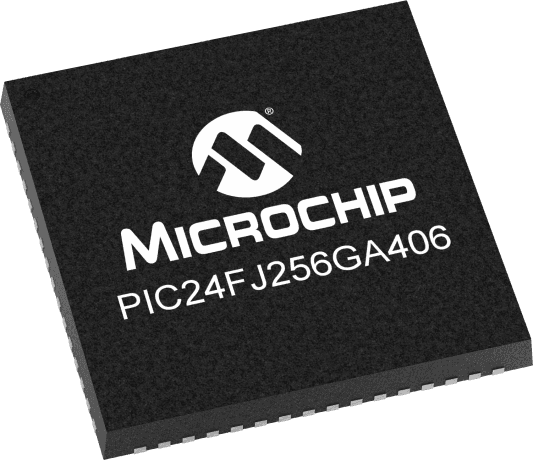

Product Images
