16-bit microcontroller featuring a PIC CPU core, operating at up to 32MHz. This surface-mount device offers 256KB FLASH memory and 96KB RAM, with 52 I/O pins including 29 programmable I/Os. Integrated peripherals include I2C (3 channels), SPI (3 channels), UART (4 channels), USB, IrDA, USART, 16 ADC channels, and 9 PWM channels. The component operates from a 2V to 3.6V supply, with a temperature range of -40°C to 85°C, and is RoHS compliant.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ256GB206-I/MR technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, USB, IrDA, USART
Lead Free
Lead Free
Length
9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
52
Number of I2C Channels
3
Number of Programmable I/O
29
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256GB206-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ256GB206-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

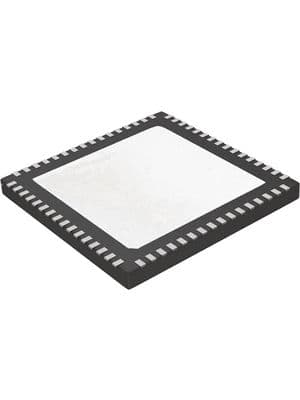

Product Images
