16-bit microcontroller featuring a PIC core, operating at up to 40MHz. This FLASH memory microcontroller offers 32KB of memory, 2KB of RAM, and 21 programmable I/Os. Integrated peripherals include I2C, SPI, UART, IrDA, USART interfaces, 8 ADC channels, and 2 PWM channels. Designed for a 3V to 3.6V operating supply voltage, it comes in a 16-bit address and data bus width, housed in a lead-free SOIC package.
Frequency40MHz
PackageSOIC
Current17mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ32MC102-I/SO technical specifications.
General
| Address Bus Width | 16b |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 40MHz |
| Height | 2.35mm |
| Interface | I2C, SPI, UART, IrDA, USART |
| Lead Free | Lead Free |
| Length | 17.9mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of ADC Channels | 8 |
| Number of I/Os | 21 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 21 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 2KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 24F |
| Supply Current | 17mA |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ32MC102-I/SO Datasheet
Download the complete datasheet for Microchip PIC24FJ32MC102-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

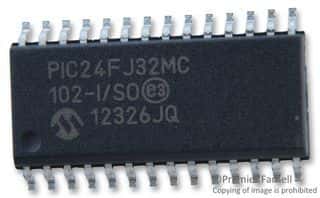

Product Images
