16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. Offers 64KB of FLASH memory and 8KB of RAM, with 21 programmable I/O pins. Supports I2C, SPI, IrDA, UART, and USART interfaces, along with peripherals including Brown-out Detect, POR, PWM, WDT, LVD, and I2C. Designed for surface mounting in an SSOP package, with an operating temperature range of -40°C to 85°C and a supply voltage of 2.2V to 3.6V.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA002T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA002T-I/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA002T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

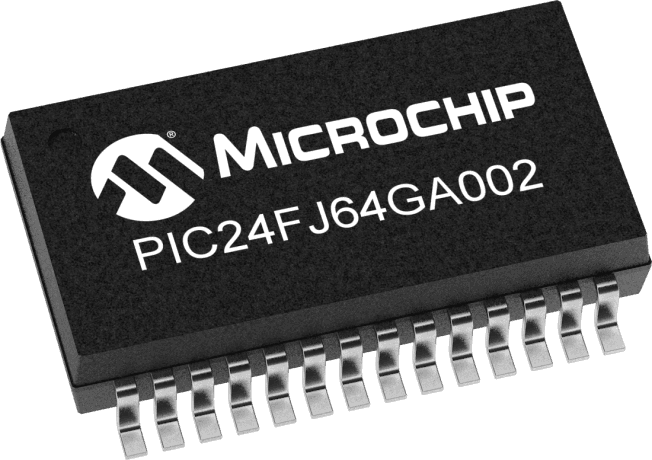

Product Images
