16-bit Flash Microcontroller (MCU) operating at 32MHz. Features 64KB FLASH memory, 8KB RAM, and 35 programmable I/O pins. Supports I2C, SPI, IrDA, and UART interfaces, with 13 ADC channels and 5 timers. Packaged in a lead-free QFN EP (8x8mm, 0.95mm height) for surface mounting, with an operating temperature range of -40°C to 85°C. Includes integrated peripherals like Brown-out Detect/Reset, POR, PWM, WDT, LVD, and I2C.
Frequency32MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA004-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
35
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA004-I/ML Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA004-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

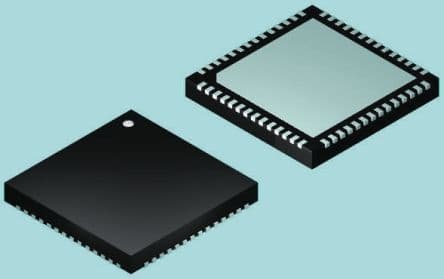

Product Images
