Microchip
PIC24FJ64GA008T-I/PT
16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP80, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-80
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA008T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
69
Number of Programmable I/O
69
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 24F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA008T-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA008T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

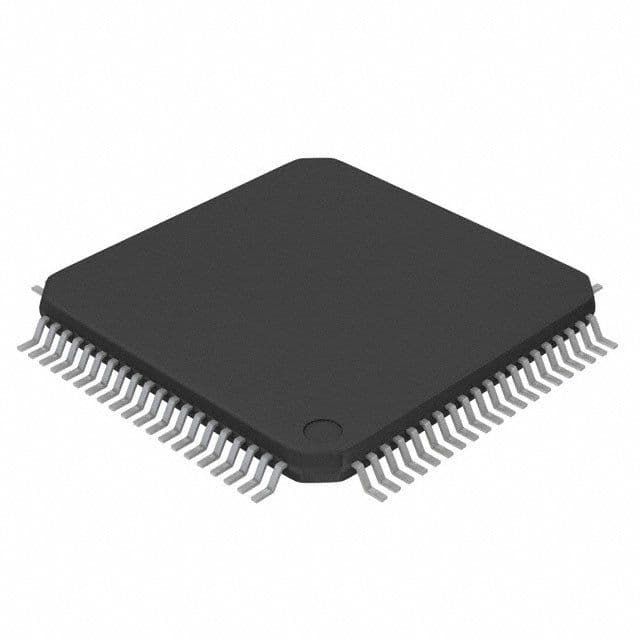

Product Images
