16-bit microcontroller featuring a PIC core architecture and 64KB of FLASH memory. Operates at up to 32MHz with 8KB of RAM. Offers 21 programmable I/O pins and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. Includes 10 A/D converter channels, 5 PWM channels, and 5 timers. Packaged in a 28-pin QFN EP surface mount package, operating from 2V to 3.6V supply voltage.
Frequency32MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA102-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
16b
Density
64KB
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA102-I/ML Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA102-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

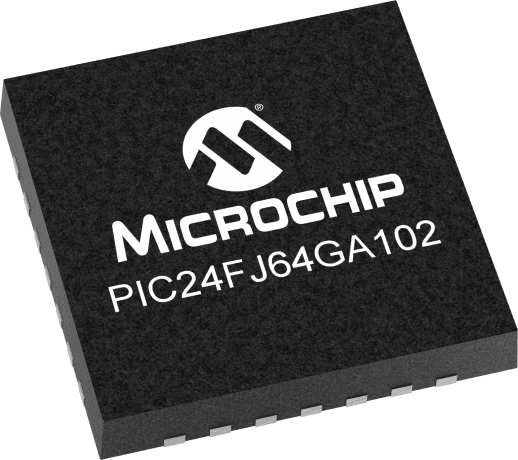

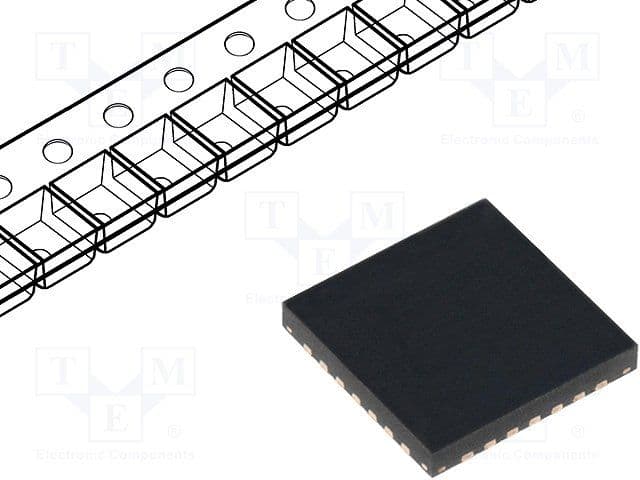

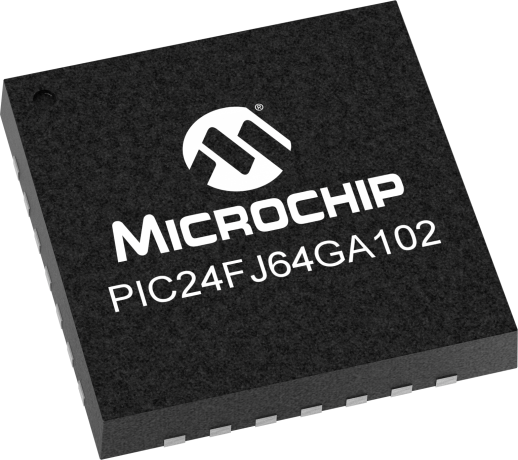

Product Images
