16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This QFN packaged IC offers 64KB of FLASH memory and 8KB of RAM. It supports multiple communication interfaces including I2C (2 channels), SPI (2 channels), UART (4 channels), USART, IrDA, and LIN. With 21 programmable I/Os, 7 PWM channels, 5 timers/counters, and a watchdog timer, this RoHS compliant component is suitable for a wide range of applications.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA306-I/MR technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Length
9.1mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
1
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
7
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
4
Number of USB Channels
0
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA306-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA306-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

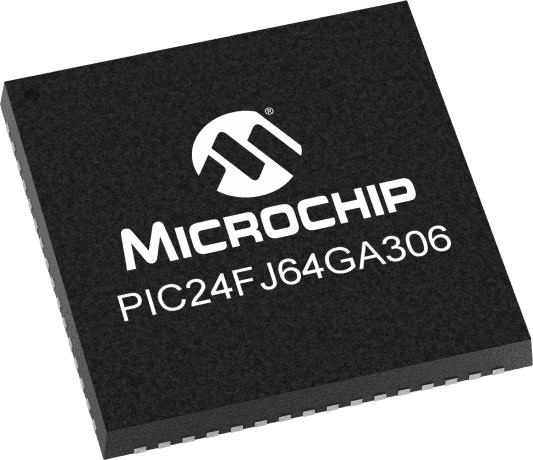

Product Images
