16-bit microcontroller featuring a PIC CPU core and 64KB FLASH memory. Operates at up to 32MHz with 8KB RAM. Supports I2C, SPI, UART, USB, and LIN interfaces, with 19 programmable I/Os. Includes 9 ADC channels, 5 PWM channels, and 5 timers. Packaged in a 28-pin DIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GB002-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
16b
Density
64KB
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USB, USART, LIN
Lead Free
Lead Free
Length
1.4inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of ADC Channels
9
Number of I/Os
19
Number of I2C Channels
2
Number of Programmable I/O
19
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Termination
Through Hole
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GB002-I/SP Datasheet
Download the complete datasheet for Microchip PIC24FJ64GB002-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

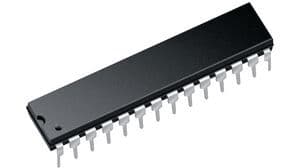

Product Images
