16-bit PIC microcontroller featuring a 32MHz core frequency and 64KB FLASH memory. This CMOS device offers 19 programmable I/Os, 5 timers/counters, and supports I2C, SPI, IrDA, UART, USB, and USART interfaces. Operating from 2V to 3.6V, it includes Brown-out Detect/Reset, POR, PWM, WDT, and LVD peripherals. Packaged in a 28-pin SOIC for surface mounting, it operates between -40°C and 85°C.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GB002T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USB, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
19
Number of Programmable I/O
19
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GB002T-I/SO Datasheet
Download the complete datasheet for Microchip PIC24FJ64GB002T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

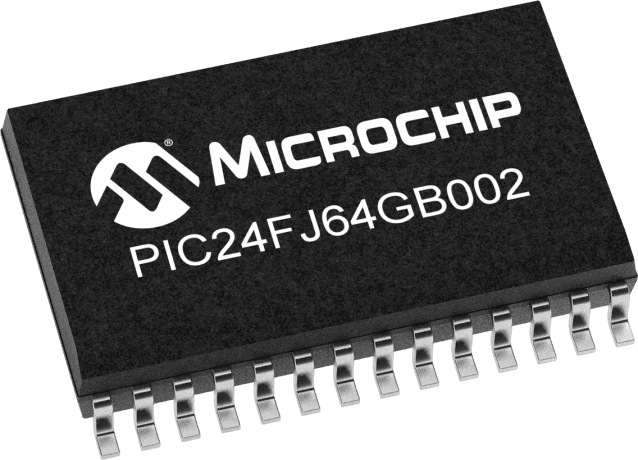

Product Images
