16-bit microcontroller featuring 96KB FLASH memory and 8KB RAM. Operates at up to 32MHz with 53 I/O pins, supporting I2C, SPI, and UART interfaces. Includes 5 timers/counters, internal oscillator, and peripherals like PWM and WDT. Housed in a VQFN package, this RoHS compliant component operates from 2V to 3.6V, with an extended temperature range of -40°C to 85°C.
Frequency32MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC24FJ96GA006-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
96KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of I/Os
53
Number of Programmable I/O
64
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ96GA006-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ96GA006-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

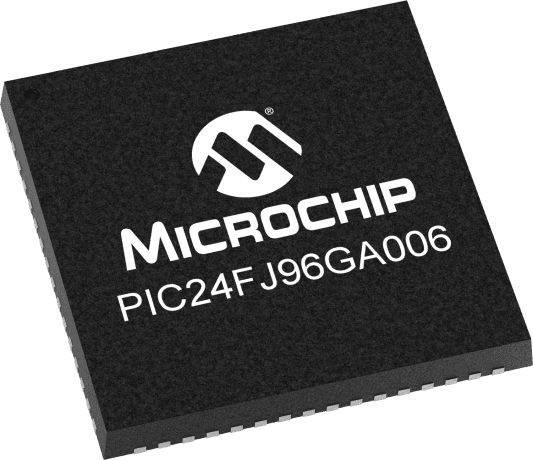

Product Images
