16-bit FLASH microcontroller featuring a 32MHz core clock speed and 96KB of program memory. This surface-mount device offers 8KB of RAM and supports I2C, SPI, and UART interfaces. It includes 16 analog-to-digital converter channels, 5 PWM channels, and 5 timers/counters, with 84 programmable I/O pins. Operating within a 2V to 3.6V supply range, this RoHS compliant microcontroller is housed in a 100-pin TQFP package.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ96GA010-I/PF technical specifications.
General
Access Time
16us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
96KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
14mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
96KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
84
Number of I2C Channels
2
Number of Programmable I/O
84
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ96GA010-I/PF Datasheet
Download the complete datasheet for Microchip PIC24FJ96GA010-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

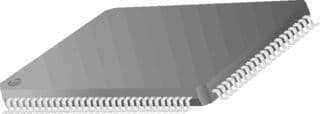

Product Images
