Frequency32MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC24FV16KA302-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of Programmable I/O
23
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
No
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC24FV16KA302-E/SP Datasheet
Download the complete datasheet for Microchip PIC24FV16KA302-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

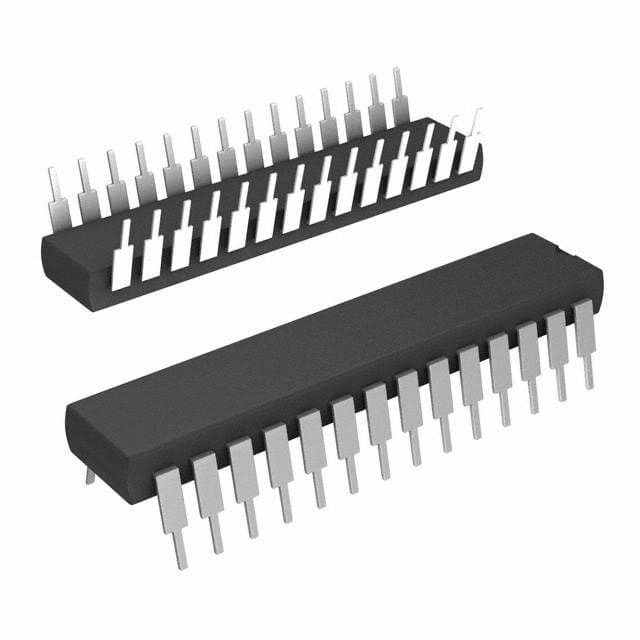

Product Images
