16-bit microcontroller featuring a 32MHz core frequency and 16KB of FLASH memory. This surface-mount device offers 23 programmable I/O pins and supports I2C, SPI, and UART interfaces. Integrated peripherals include multiple timers, PWM channels, and a watchdog timer, operating within a 2V to 5.5V supply voltage range. Packaged in a 28-pin SOIC case, this lead-free component is designed for operation from -40°C to 85°C.
Frequency32MHz
PackageSOIC
Current3.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FV16KA302-I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
2.35mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
17.9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
16
Number of I/Os
23
Number of I2C Channels
2
Number of Programmable I/O
23
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
3.5mA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV16KA302-I/SO Datasheet
Download the complete datasheet for Microchip PIC24FV16KA302-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

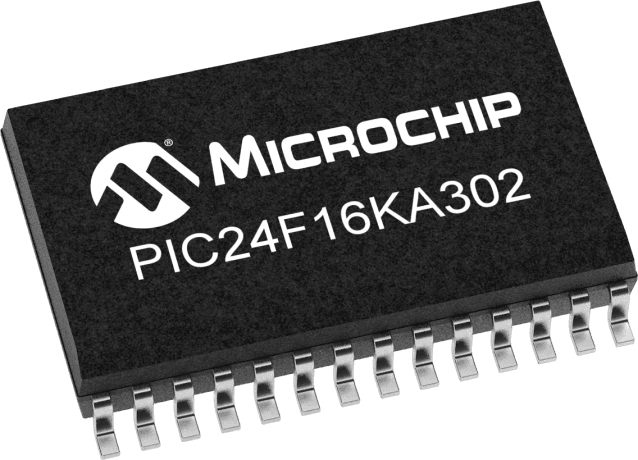

Product Images
