16-bit PIC microcontroller featuring a 64MHz core, 16KB FLASH memory, and 2KB RAM. Offers 23 I/O pins, 19 ADC channels, and supports UART, I2C, SPI, IrDA, and USART interfaces. Operates from 2V to 5.5V with an internal oscillator and includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a QFN surface mount configuration, this RoHS compliant component is designed for a wide operating temperature range of -40°C to 85°C.
Frequency64MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FV16KM202-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
64MHz
Interface
UART, I2C, SPI, IrDA, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
19
Number of I/Os
23
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV16KM202-I/ML Datasheet
Download the complete datasheet for Microchip PIC24FV16KM202-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

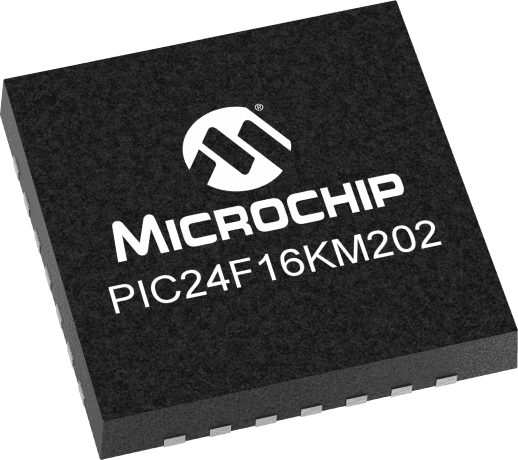

Product Images
