Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FV16KM202-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
23
Number of Programmable I/O
23
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV16KM202-I/SS Datasheet
Download the complete datasheet for Microchip PIC24FV16KM202-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

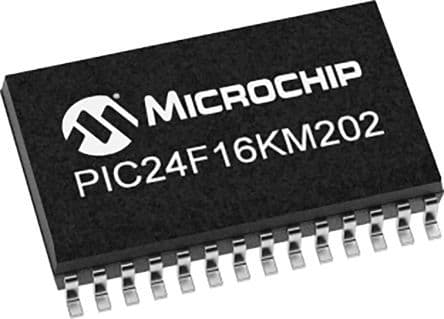

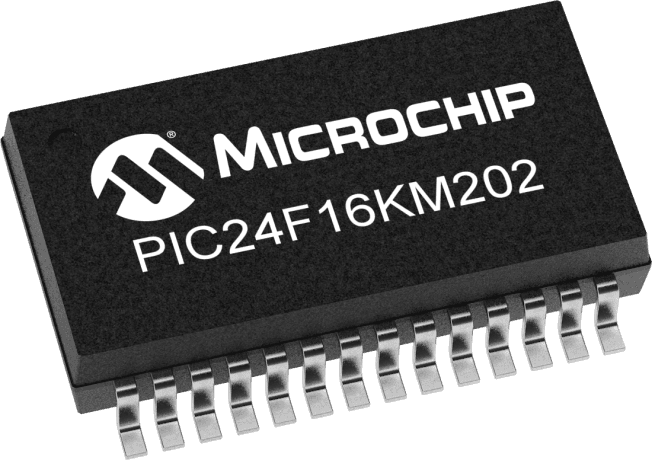

Product Images
