16-bit microcontroller featuring a 32MHz core frequency and 32KB of FLASH memory. This PIC microcontroller offers 2KB of RAM, 17 programmable I/O pins, and supports I2C, SPI, UART, IrDA, USART, and LIN interfaces. Equipped with 12 A/D converter channels, 3 PWM channels, and 5 timers/counters, it operates from 2V to 5.5V with a temperature range of -40°C to 85°C. The through-hole mounted PDIP-20 package is lead-free and RoHS compliant.
Frequency32MHz
PackagePDIP
Current3.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FV32KA301-I/P technical specifications.
General
Address Bus Width
16b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.195inch
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
1.06inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
16
Number of I/Os
17
Number of I2C Channels
2
Number of Programmable I/O
17
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Supply Current
3.5mA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV32KA301-I/P Datasheet
Download the complete datasheet for Microchip PIC24FV32KA301-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

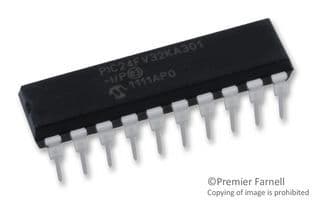

Product Images
