16-bit microcontroller featuring a 32MHz PIC core, 32KB FLASH memory, and 2KB RAM. This surface-mount device offers 23 programmable I/Os, supporting I2C, SPI, UART, IrDA, USART, and LIN interfaces. Integrated peripherals include 13 A/D converter channels, 3 PWM channels, 2 I2C channels, 2 SPI channels, 2 UART channels, and 5 timers/counters, along with a watchdog timer. Operating from 2V to 5.5V, it is housed in a 6mm x 6mm x 0.95mm QFN package and operates within a -40°C to 85°C temperature range.
Frequency32MHz
PackageQFN
Current3.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FV32KA302-I/ML technical specifications.
General
Address Bus Width
16b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
16
Number of I/Os
23
Number of I2C Channels
2
Number of Programmable I/O
23
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
3.5mA
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV32KA302-I/ML Datasheet
Download the complete datasheet for Microchip PIC24FV32KA302-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

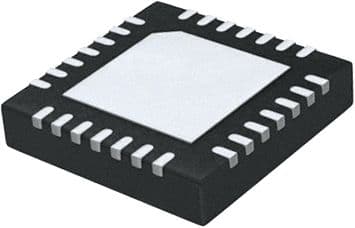

Product Images
