16-bit FLASH microcontroller operating at 40MHz, featuring a PIC core architecture. This surface-mount device offers 128KB of FLASH memory and 8KB of RAM, with 21 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, IrDA, USART interfaces, 5 timers/counters, and a watchdog timer. Designed for a 3V to 3.9V operating supply voltage, it supports a wide temperature range from -40°C to 125°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ128GP202-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24H
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ128GP202-E/SO Datasheet
Download the complete datasheet for Microchip PIC24HJ128GP202-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

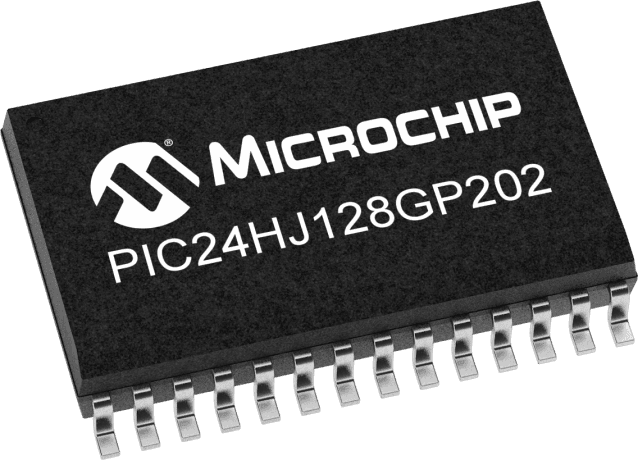

Product Images
