16-bit microcontroller featuring 128KB FLASH memory and 8KB RAM, operating at up to 40MHz. This surface-mount device offers 21 programmable I/Os, multiple communication interfaces including I2C, SPI, and UART, and 4 PWM channels. Integrated peripherals include a watchdog timer, brown-out detect, and 10 ADC channels. Packaged in a 28-pin SOIC with a temperature range of -40°C to 85°C.
Frequency80MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ128GP202-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
80MHz
Height
2.35mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24H
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ128GP202-I/SO Datasheet
Download the complete datasheet for Microchip PIC24HJ128GP202-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

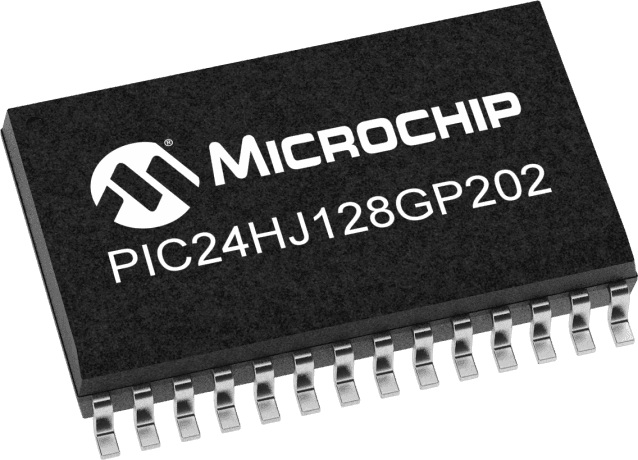

Product Images
