16-bit microcontroller featuring a PIC core architecture, operating at up to 40MHz with 128KB of FLASH memory and 8KB of SRAM. This surface-mount device is housed in a 64-pin TQFP package with a 0.5mm lead pitch, measuring 10mm x 10mm x 1.05mm. It offers extensive connectivity with I2C, SPI, CAN, UART, IrDA, USART, and LIN interfaces, alongside 18 A/D converter channels and 53 programmable I/Os. Integrated peripherals include a watchdog timer, PWM, DMA, and brown-out detect/reset.
Frequency80MHz
PackageTQFP
Current38mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ128GP206-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
128KB
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, IrDA, USART, LIN
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH, , SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
18
Number of Bits
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
Series
PIC® 24H
Supply Current
38mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ128GP206-I/PT Datasheet
Download the complete datasheet for Microchip PIC24HJ128GP206-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

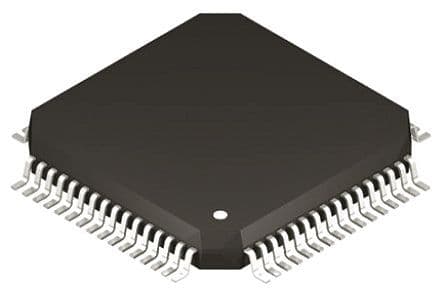

Product Images
