16-bit microcontroller (MCU) featuring a PIC core architecture, operating at up to 40MHz with 128KB FLASH memory and 8KB RAM. This surface-mount TQFP package offers 85 programmable I/Os, 32 ADC channels, and multiple communication interfaces including I2C (2 channels), SPI (2 channels), UART (2 channels), CAN, IrDA, USART, and LIN. It supports a wide operating temperature range of -40°C to 85°C and an operating supply voltage of 3.3V. Additional features include 8 PWM channels, 9 timers/counters, and a watchdog timer.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ128GP510A-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, CAN, IrDA, USART, LIN
Length
12mm
Max Frequency
7.37MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
32
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
3.3V
Package Quantity
119
Packaging
Tray
Radiation Hardening
No
RAM Size
8KB
Series
PIC24H
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ128GP510A-I/PT Datasheet
Download the complete datasheet for Microchip PIC24HJ128GP510A-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

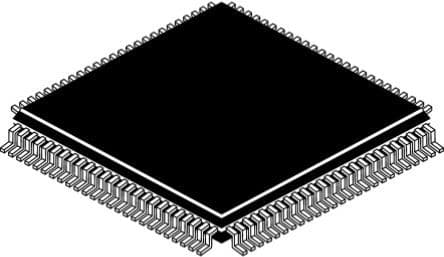

Product Images
