16-bit Flash microcontroller operating at 40MHz, featuring a PIC core architecture. This through-hole mounted device offers 13 programmable I/O pins and supports I2C, SPI, and UART/USART interfaces. With 12KB of FLASH memory and 1KB of RAM, it includes 3 timers/counters and peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Designed for automotive applications (AEC-Q100), it operates from 3V to 3.9V with a typical 3.3V supply, within a -40°C to 125°C temperature range.
Frequency40MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24HJ12GP201-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.9V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24H
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ12GP201-E/P Datasheet
Download the complete datasheet for Microchip PIC24HJ12GP201-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

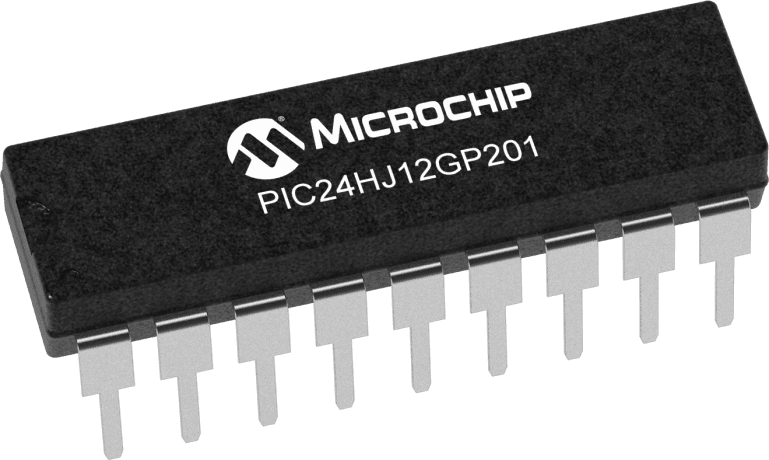

Product Images
