16-bit microcontroller featuring a PIC core architecture, operating at up to 40MHz. This surface-mount device offers 12KB of FLASH memory and 1KB of RAM, with 21 programmable I/O pins. Integrated peripherals include I2C, SPI, and UART interfaces, along with Brown-out Detect/Reset, POR, PWM, and WDT functions. Designed for a 3V to 3.9V operating supply voltage, it functions within a -40°C to 85°C temperature range.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ12GP202T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.9V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® 24H
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ12GP202T-I/SO Datasheet
Download the complete datasheet for Microchip PIC24HJ12GP202T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

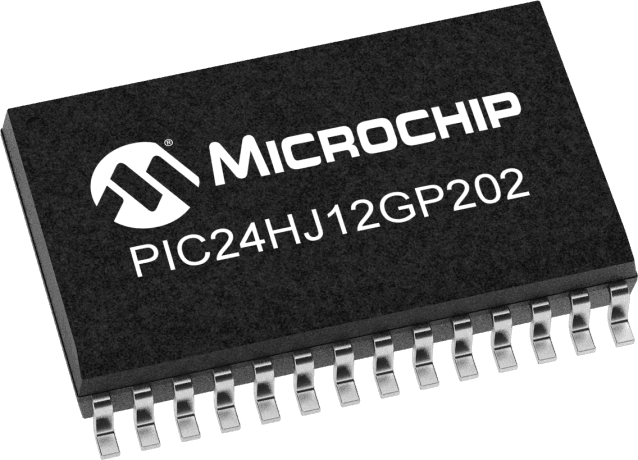

Product Images
