16-bit Flash microcontroller featuring a PIC core architecture, operating at up to 40MHz. This surface-mount device offers 256KB of FLASH memory and 16KB of SRAM, with a 16-bit address and data bus width. It includes 53 programmable I/O pins, multiple communication interfaces such as I2C (2 channels), SPI (2 channels), and UART (2 channels), along with 8 PWM channels and 9 timers/counters. The TQFP package measures 10mm x 10mm with a 1mm height and 0.5mm lead pitch, supporting a supply voltage range of 3V to 3.6V.
Frequency40MHz
PackageTQFP
Current38mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ256GP206-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
256KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, USART, 3-WIRE, SPI, IrDA, UART, LIN
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH, , SRAM
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
18
Number of Bits
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
PIC® 24H
Supply Current
38mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ256GP206-I/PT Datasheet
Download the complete datasheet for Microchip PIC24HJ256GP206-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

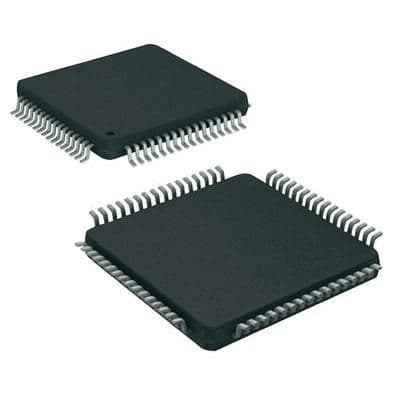

Product Images
