16-bit microcontroller featuring a PIC core architecture, operating at up to 80MHz with 256KB of FLASH memory and 16KB of SRAM. This surface-mount device is housed in a 100-pin TQFP package (14mm x 14mm, 1.05mm height) and offers 85 programmable I/Os. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with CAN, IrDA, LIN, 32 ADC channels, 8 PWM channels, and 9 timers/counters. The operating temperature range is -40°C to 85°C, with supply voltages from 3V to 3.6V.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ256GP610-I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
256KB
Frequency
80MHz
Height
1.05mm
Interface
I2C, USART, 3-WIRE, SPI, CAN, IrDA, UART, LIN
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
14mm
Max Frequency
32kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH, , SRAM
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
32
Number of Bits
16
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
PIC24H
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ256GP610-I/PF Datasheet
Download the complete datasheet for Microchip PIC24HJ256GP610-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

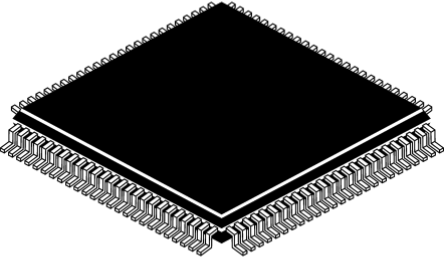

Product Images
