16-bit microcontroller featuring a PIC core architecture, 32KB FLASH memory, and 4KB RAM. Operates at up to 80MHz with 21 programmable I/O pins. Includes multiple interfaces such as I2C, SPI, and UART, along with 10 ADC channels and 4 PWM channels. Packaged in a 6x6mm VQFN with a height of 0.95mm, this surface-mount device supports a 3V to 3.9V operating supply voltage and is RoHS compliant.
Frequency80MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ32GP302-I/MM technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Density | 32KB |
| Frequency | 80MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.9V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of ADC Channels | 10 |
| Number of Bits | 16 |
| Number of I/Os | 21 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 21 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 24H |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24HJ32GP302-I/MM Datasheet
Download the complete datasheet for Microchip PIC24HJ32GP302-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

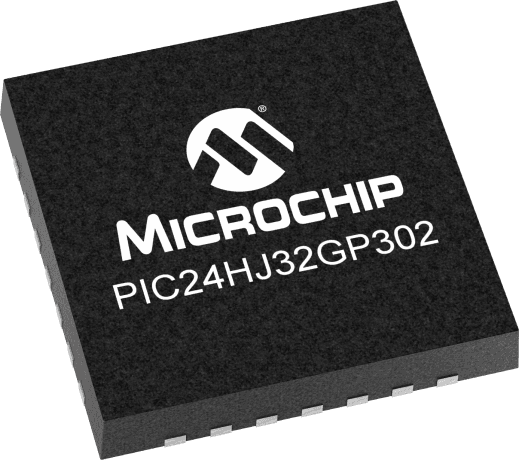

Product Images
