Microchip
PIC32MX110F016B-V/SO
32-BIT, FLASH, 40 MHz, RISC MICROCONTROLLER, PDSO28, 17.90 X 7.50 MM, 2.65 MM HEIGHT, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOIC-28
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016B-V/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, IrDA, UART, USART, USB, I2S
Max Frequency
40MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of Programmable I/O
21
Number of Timers/Counters
15
Number of UART Channels
2
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016B-V/SO Datasheet
Download the complete datasheet for Microchip PIC32MX110F016B-V/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

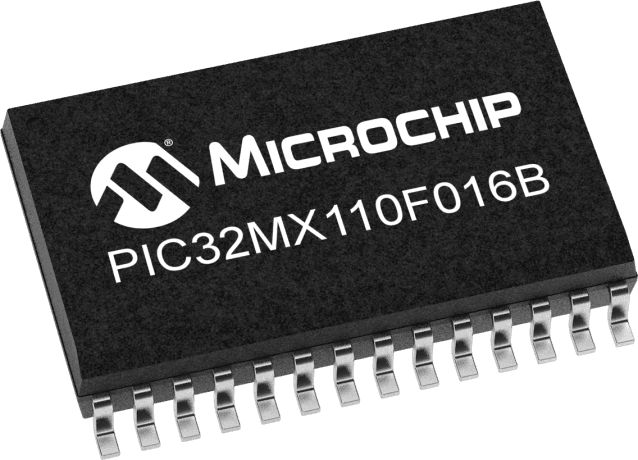

Product Images
