Microchip
PIC32MX110F016C-I/TL
32-BIT, FLASH, 40 MHz, RISC MICROCONTROLLER, QCC36, 5 X 5 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, VTLA-36
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016C-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of Programmable I/O
25
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016C-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX110F016C-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

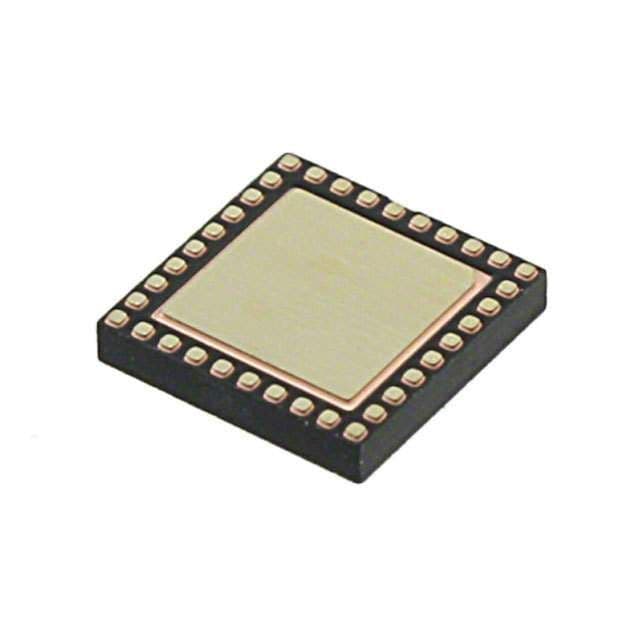

Product Images
