32-bit RISC microcontroller featuring a 40MHz core frequency and 16KB of FLASH memory. This integrated circuit offers 4KB of RAM and supports I2C, SPI, IrDA, UART, USART, USB, and I2S interfaces. With 35 I/O pins, including 34 programmable, and 15 timers/counters, it provides extensive connectivity and control. Operating from 2.3V to 3.6V, this VQFN packaged microcontroller is suitable for automotive applications with an operating temperature range of -40°C to 105°C. Includes peripherals like Brown-out Detect/Reset, POR, PWM, WDT, and DMA.
Frequency40MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016D-V/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, USB, I2S
Max Frequency
40MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of I/Os
35
Number of Programmable I/O
34
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016D-V/ML Datasheet
Download the complete datasheet for Microchip PIC32MX110F016D-V/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

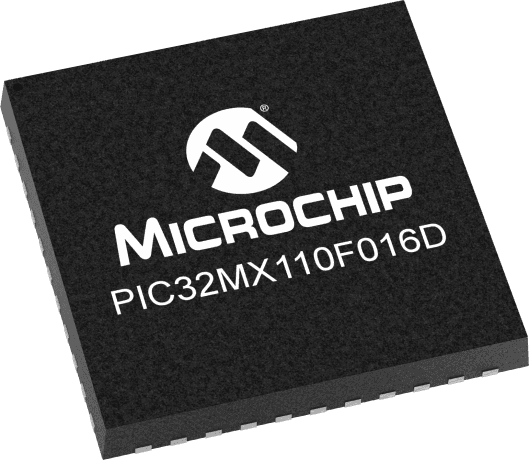

Product Images
