32-bit RISC microcontroller featuring a 40MHz core frequency and 128KB of FLASH memory. This QFN-packaged MCU offers 21 programmable I/O pins, 32KB RAM, and supports I2C, SPI, UART, IrDA, USART, and I2S interfaces. Equipped with 5 timers/counters, 2 UART channels, and a watchdog timer, it operates within a 2.3V to 3.6V supply range and boasts a temperature range of -40°C to 85°C. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and DMA.
Frequency40MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC32MX150F128B-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX150F128B-I/ML Datasheet
Download the complete datasheet for Microchip PIC32MX150F128B-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

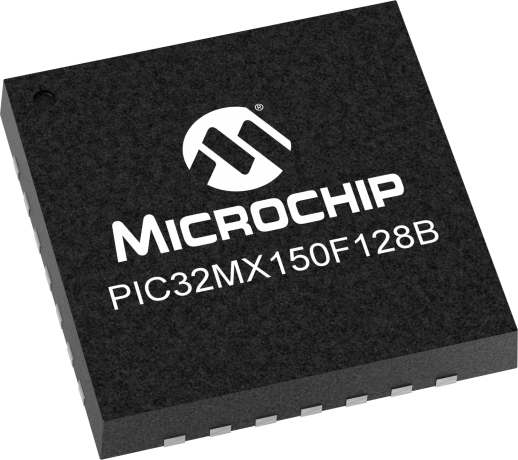

Product Images
