32-bit RISC microcontroller featuring a 40MHz core frequency and 128KB FLASH memory. This SOIC-28 packaged MCU offers 21 programmable I/Os, dual I2C and UART interfaces, and dual SPI channels. Integrated peripherals include a PWM generator, watchdog timer, and 10 ADC channels, operating from a 2.3V to 3.6V supply. Designed for a temperature range of -40°C to 85°C, this RoHS compliant component is ideal for embedded applications.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC32MX150F128B-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, IrDA, UART, USART, LIN, I2S
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
1
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX150F128B-I/SO Datasheet
Download the complete datasheet for Microchip PIC32MX150F128B-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

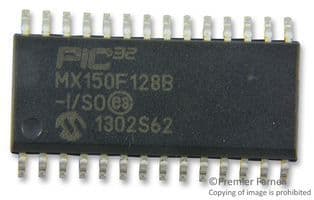

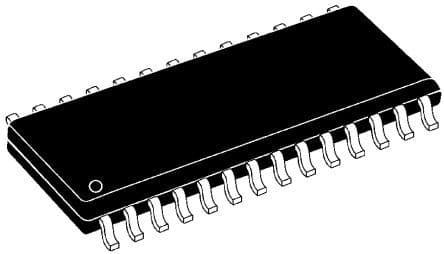

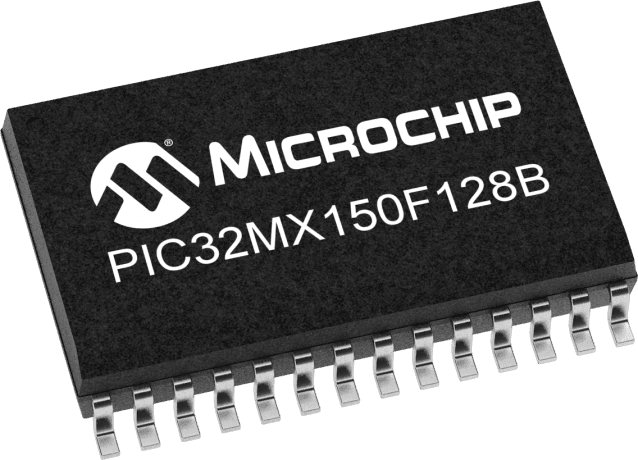

Product Images
