32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 50MHz. This through-hole mounted PDIP package offers 256KB of FLASH memory and 64KB of RAM. Integrated interfaces include I2C (2 channels), SPI (2 channels), USB, UART (2 channels), IrDA, USART, and I2S. Additional features include 10 ADC channels, 21 programmable I/Os, 5 timers/counters, and peripherals such as DMA, PWM, WDT, POR, and Brown-out Detect/Reset. Designed for operation between -40°C and 85°C with a supply voltage range of 2.3V to 3.6V.
Frequency50MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC32MX170F256B-50I/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Height
0.15inch
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Length
35.56mm
Max Frequency
50MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Through Hole
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Weight
0.147798oz
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX170F256B-50I/SP Datasheet
Download the complete datasheet for Microchip PIC32MX170F256B-50I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

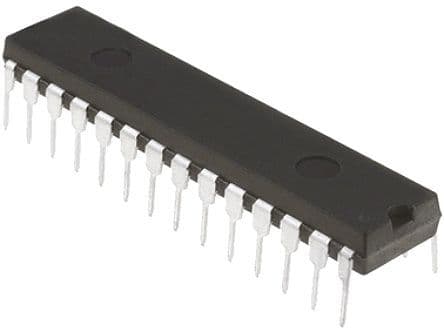

Product Images
