32-bit RISC microcontroller featuring a 50MHz core, 256KB FLASH memory, and 64KB RAM. Offers 21 programmable I/Os, 10 ADC channels, and 5 timers/counters. Supports I2C, SPI, USB, UART, IrDA, USART, and I2S interfaces. Includes peripherals like Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Packaged in SSOP for surface mounting, operating from 3.6V with an internal oscillator, and rated for -40°C to 105°C.
Frequency50MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX170F256B-V/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Interface | I2C, SPI, USB, UART, IrDA, USART, I2S |
| Max Frequency | 50MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of ADC Channels | 10 |
| Number of I/Os | 21 |
| Number of Programmable I/O | 21 |
| Number of Timers/Counters | 5 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 47 |
| Packaging | Bulk |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 64KB |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, PIC® 32MX |
| Watchdog Timer | Yes |
| Weight | 0.080001oz |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX170F256B-V/SS Datasheet
Download the complete datasheet for Microchip PIC32MX170F256B-V/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

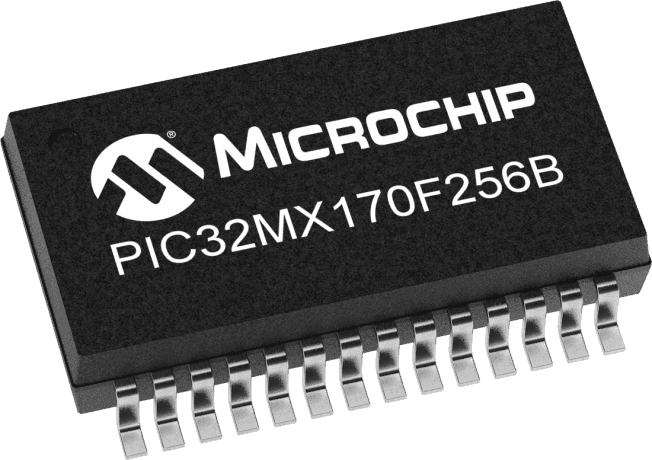

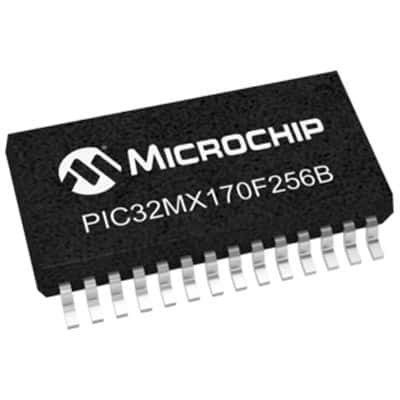

Product Images
