32-bit RISC microcontroller featuring a PIC core architecture. Offers 256KB FLASH memory and 64KB RAM. Operates at a maximum frequency of 50MHz with an internal oscillator. Supports I2C, SPI, USB, UART, IrDA, USART, and I2S interfaces, along with 10 ADC channels and 21 programmable I/Os. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Packaged in a SOIC surface mount case, operating from -40°C to 85°C.
Frequency50MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX170F256BT-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Max Frequency
50MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Weight
0.078125oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX170F256BT-I/SO Datasheet
Download the complete datasheet for Microchip PIC32MX170F256BT-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

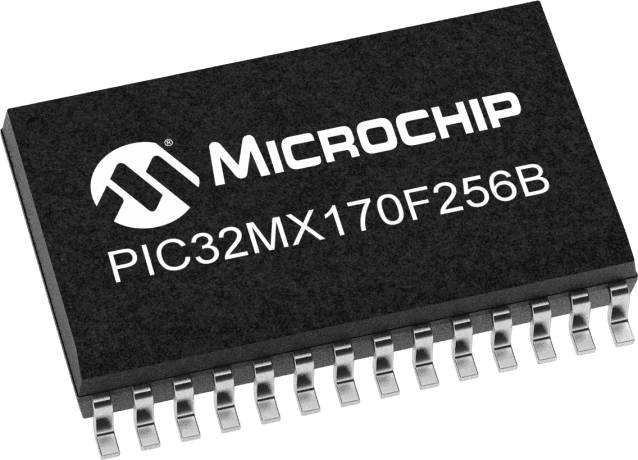

Product Images
